AMD R5 5600G/5700G
Ryzen 5 5600 integrates 6 cores 12 threads based on "Zen 3" Core Architecture and features 16MB of L3 cache. Clock from 3.9 GHz to 4.4 GHz.
AMD Vega 7
Manufactured in the modern 7nm process. It features seven Compute Units (448 shaders) and runs at up to 1,900 MHz.
DDR and SSD
16/32/64GB DDR4 RAM and 512GB/1TB/2TB SSD is available.
01
Mini Size
The case of the mini computer is made of 0.8mm SPCC, the mini case is only 8.1" * 3.5" * 9.0", it is only takes up 4.3L space.
02

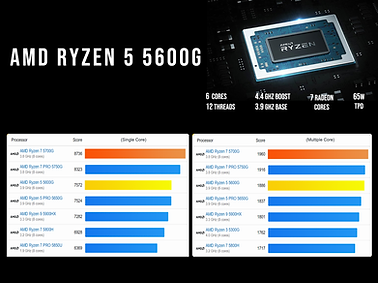

CPU - AMD Ryzen 5 5600G
Ryzen 5 5600 integrates 6 cores 12 threads based on "Zen 3" Core Architecture and features 16MB of L3 cache. Clock from 3.9 GHz to 4.4 GHz. and the proccessors can be replaced by R5 5700G.
03
AMD Vega 7 Graphics
Integrated with AMD ryzen 5 series CPU. AMD Vega 7 IGPU features seven Compute Units (448 shaders) and runs at up to 1,900 MHz. t is casual gaming-friendly, allowing one to play most games. Besides, there is a PCIE slot available user can expand a dedicated GPU.
04

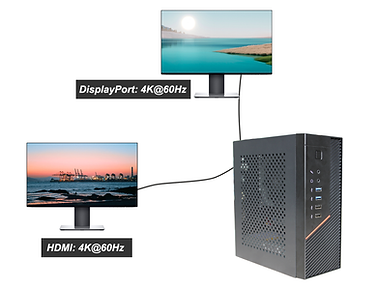

UHD Video Output
2 video outputs are availble in this mini pc. both of the 2 interface can stream video out 4K@60Hz.
05

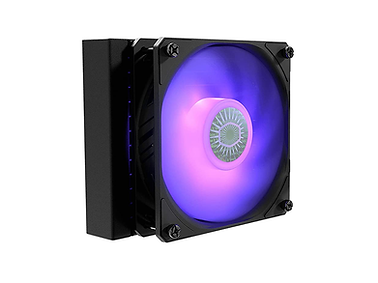

Cooling
This mini computer can support standard cooling fan comes with the CPU manufacturers; besides, in the panel of the case there are many heat dissipation holes that help to cool down the temperature inside the computer.
06

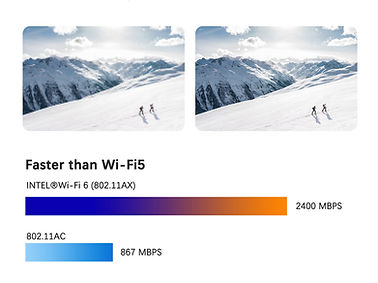

Network
This computer is integrated with the WIFI 6 module which makes the wireless internet connecting almost 3 times faster than the old WiFI 5. Besides, Gigabyte ethernet is available with 1 RJ45 ports. users can surf the internet more efficiently.
07
Easy Upgrade Part 1----CPU
This computer adapts mini ITX mother board with AM4 CPU socket that will support a lot CPUs such as 5700G, 5600,5500. user can change the CPU according to their daily request.
08
Upgrade Part 2----Memory
There are 2 SSD slots and 2 RAM slots available on the mother board of this mini pc. each RAM slot support up to 32GB RAM; and 2 SSD slot support M2 2280 PCIe 3.0 * 4 SSD. besides, there is a bracket inside the case which can be used to install one more 2.5" HDD or 3.5" HDD.
09
Upgrade Part 3----PCIe
In the ITX mother board, there is a PCIe 4.0 * 16 slot available which can be used to install a wireless network module or a graphic card or other device with PCIe interface. such as a COM port or multi ports ethernet card.
10
Applications
The mini size , lightweight and high performance makes this little mini PC a versertile in applications. it can be used when gaming, compling big computer program, editing videos, making the computer simulation.
